Neodymium Rectangular Pot Magnet with Countersunk Holes - 10mm x 13.5mm
Product code: AMFYPSNi10
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:
This rectangular pot magnet has a length of 10mm, a width of 13.5mm, a height of 5mm, a diameter (1) of 3.3mm and diameter (2) of 6.5mm. The length from the center of the hole to the edge of the magnet is 5mm. This magnet has a weight of 4.5g and a pull force of 4kg. It is identified by AMF Product Code AMFYPSNI10.
Uses for our Rare Earth Rectangular Countersunk Pot Magnets:

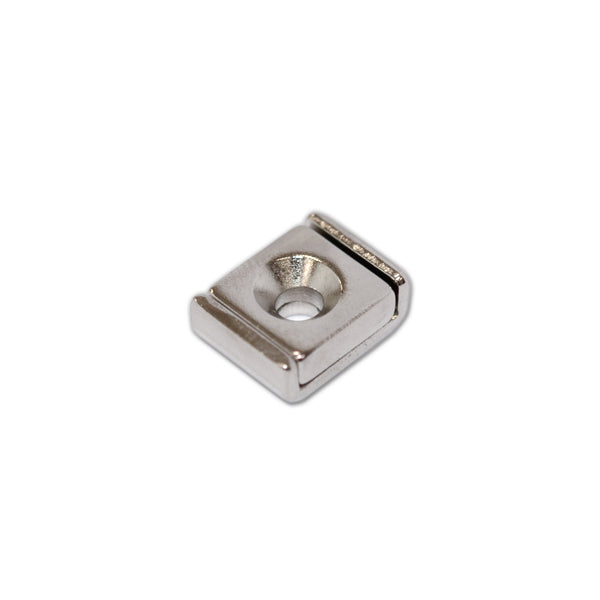

This rectangular pot magnet is a Neodymium magnet encased inside a chrome plated steel channel. The steel channel increases magnetic strength and also protects the magnet from being damaged during day to day use. This magnet measures 10mm in length, 13.5mm wide, and 5mm in height with a single countersunk hole which has a diameter of 6.5-3.3mm. Both versatile and practical, these rectangular pot magnets have a countersunk hole on their north pole and hold very well against steel surfaces. Magnets are perfect for mounting, home improvement or DIY projects such as making a simple metal tool holding device. These countersunk magnets are also popular as cabinet door or shower door catches.
| Product Code | L | L1 | W | H | D1 | D2 | Weight | Pull Force |
| AMFYPSNI10 | 10mm | 5mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 4.5g | 4kg |
| AMFYPSNI20 | 20mm | 10mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 9.2g | 8kg |
| AMFYPSNI40 | 40mm | 30mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 18.4g | 17kg |
| AMFYPSNI60 | 60mm | 50mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 27.9g | 30kg |
| AMFYPSNI80 | 80mm | 70mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 37.8g | 33kg |
| AMFYPSNI100 | 100mm | 90mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 47.8g | 36kg |
| AMFYPSNI120 | 120mm | 110mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 56g | 40kg |
No FAQ available
