Neodymium Pot Magnet - 75 mm x 18 mm | Straight Hole

Product Code AMFYPB75
Pull Force* 155 kg
Weight 471gm
Style Neo pot w/ straight hole
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetized thru the 18 mm
Dimensions Height:18 mm, Diameter:75 mm
*Measured against up to 10mm mild steel.

Product Description:

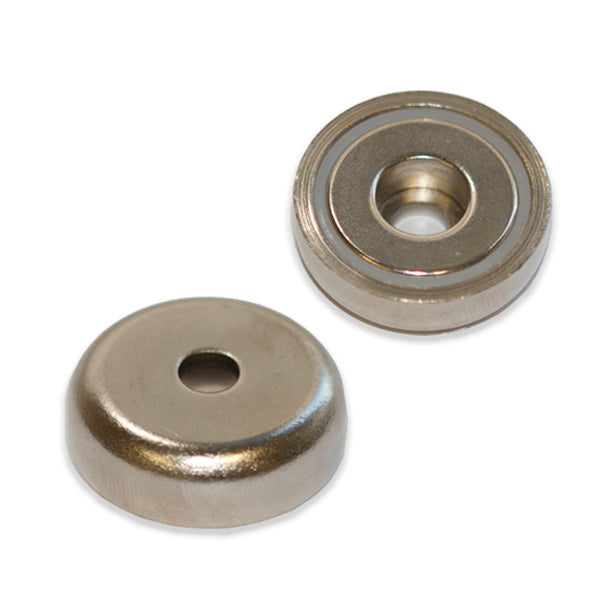

This neodymium rare earth pot magnet measures 75 mm (D) x 18 mm (H).
The straight center hole has an inside diameter of 10.5 mm with an internal flange hole of 18 mm.
It weighs 471 grams and has a pull force of 155 kg.

About pot magnets:

This neodymium rare earth pot magnet with a straight center hole is commonly used when a bolt is needed to position of the magnet. Neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap for extra protection against chipping or cracking. Due to the protective cover on these pot magnets, they are a single sided magnet which allows for a non-destructive and easy solution for attaching and suspending objects.

ModelNo. D1Ø D2Ø H Pull force(kg) Weight (g)
AMFYPB16 16 3.5 6.5 5 4 6
AMFYPB20 20 4.5 8 7 6 12
AMFYPB25 25 5.5 9 8 14 23
AMFYPB32 32 5.5 9 8 23 36
AMFYPB36 36 6.5 11 9 29 50
AMFYPB42 42 6.5 11 9 32 73
AMFYPB48 48 8.5 15 11.5 63 114
AMFYPB60 60 8.5 15 15 95 240
AMFYPB75 75 10.5 18 18 155 471
