Neodymium Pot Magnet - 48 mm x 11.5 mm | Straight Hole
Product code: AMFYPB48
$33.13for 1 to 9 items
$26.20buy 10 to 99 itemsand
save 21%
$20.56buy 100+ itemsand
save 38%
Total
$33.13
Leading Magnet Supplier
30 Day Returns
Neodymium Pot Magnet - 48 mm x 11.5 mm | Straight Hole
Product Code
AMFYPB48
Pull Force*
63 kg
Weight
114gm
Style
Neo pot w/ straight hole
Coating
Nickel (NiCuNi)
Direction of Magnetisation
Axially magnetized thru the 11.5 mm
Dimensions
Height:11.5 mm, Diameter:48 mm
*Measured against up to 10mm mild steel.
Product Description:

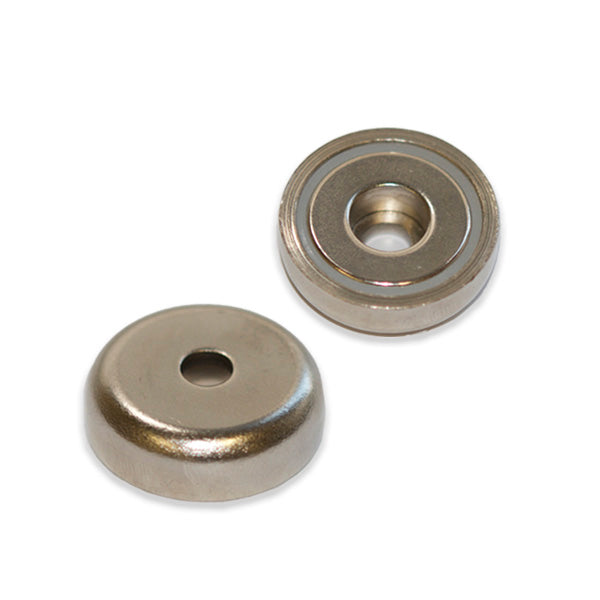

This neodymium rare earth pot magnet measures 48 mm (D) x 11.5 mm (H).
It has a straight center hole with an inside diameter of 8.5 mm and an internal flange hole of 15 mm.
It weighs 114 grams and has a pull force of 63 kg.
About neodymium pot magnets:
These rare earth pot magnets with round holes are commonly held in position with bolts. Neodymium mounting magnets are high strength rare earth magnets in a mild steel cup for extra protection against chipping or cracking. Due to the protective cover on these pot magnets, they are a single sided magnet which allows for a non-destructive and easy solution for attaching and suspending objects.
| ModelNo. | DØ | D1Ø | D2Ø | H | Pull force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
No FAQ available
