Neodymium Pot Magnet - 42 mm x 9 mm | Straight Hole
Product code: AMFYPB42
Neodymium Pot Magnet - 42 mm x 9 mm | Straight Hole
Product Description:

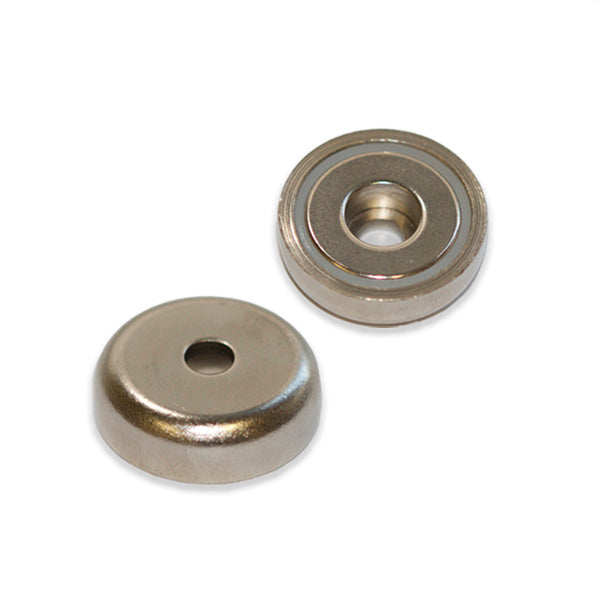

This neodymium mounting magnet measures 42 mm (D) x 9 mm (H).
It has a straight center hold with an inside diameter of 6.5 mm and an internal flange hole of 11 mm.
It weights 73 grams and has a pull force of 32 kg.
About neodymium pot / mounting magnets:
Neodymium pot magnets, also known as mounting magnets or cup magnets, are high strength rare earth magnets in a mild steel cap for extra protection against damage. Due to the protective cover on these pot magnets, they are a single-sided magnet.
| ModelNo. | DØ | D1Ø | D2Ø | H | Pull force (kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
