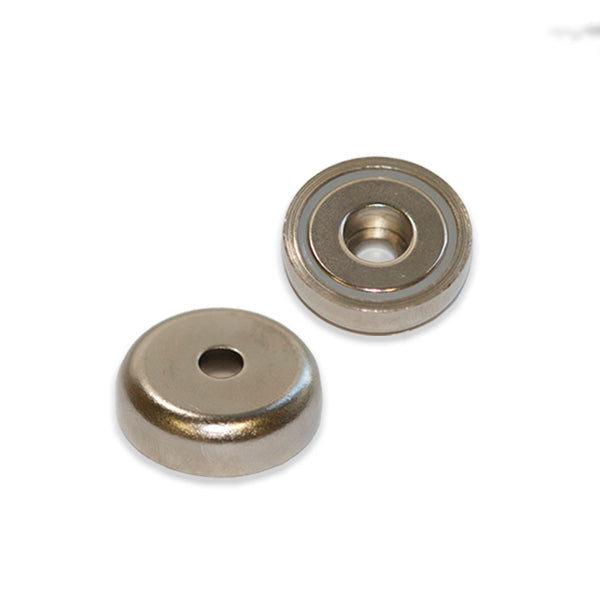

Neodymium Pot Magnet - 32 mm x 8 mm | Straight Hole

Product code: AMFYPB32

$6.05for 1 to 9 items
$5.15buy 10 to 99 itemsand save 14%
$4.24buy 100+ itemsand save 29%

Neodymium Pot Magnet - 32 mm x 8 mm | Straight Hole

Product Code AMFYPB32
Pull Force* 23 kg
Weight 36gm
Style Neo pot w/ straight hole
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetized thru the 8 mm
Dimensions Height:8 mm, Diameter:32 mm

About pot (mounting) magnets:

Neodymium mounting magnets are high strength rare earth magnets in a mild steel cap for extra protection against damage. A bolt can be used to position this rare earth mounting magnet. Due to the protective cover on these pot magnets, they are a single sided magnet.

ModelNo. D1Ø D2Ø H Pull force (kg) Weight (g)
AMFYPB16 16 3.5 6.5 5 4 6
AMFYPB20 20 4.5 8 7 6 12
AMFYPB25 25 5.5 9 8 14 23
AMFYPB32 32 5.5 9 8 23 36
AMFYPB36 36 6.5 11 9 29 50
AMFYPB42 42 6.5 11 9 32 73

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

About pot (mounting) magnets:

Neodymium mounting magnets are high strength rare earth magnets in a mild steel cap for extra protection against damage. A bolt can be used to position this rare earth mounting magnet. Due to the protective cover on these pot magnets, they are a single sided magnet.

ModelNo. D1Ø D2Ø H Pull force (kg) Weight (g)
AMFYPB16 16 3.5 6.5 5 4 6
AMFYPB20 20 4.5 8 7 6 12
AMFYPB25 25 5.5 9 8 14 23
AMFYPB32 32 5.5 9 8 23 36
AMFYPB36 36 6.5 11 9 29 50
AMFYPB42 42 6.5 11 9 32 73

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
