Neodymium Pot Magnet - 75 mm | Male Thread
Product code: AMFYPC75
$65.61buy 10 to 99 itemsand
save 25%
$55.68buy 100+ itemsand
save 37%
Total
$87.91
Leading Magnet Supplier
30 Day Returns
Neodymium Pot Magnet - 75 mm | Male Thread
Product Code
AMFYPC75
Pull Force*
164 kg
Weight
550gm
Style
Neo Pot Male Thread
Coating
Nickel (NiCuNi)
Direction of Magnetisation
Axially magnetized thru the 15 mm
*Measured against up to 10mm mild steel.
Product Description:

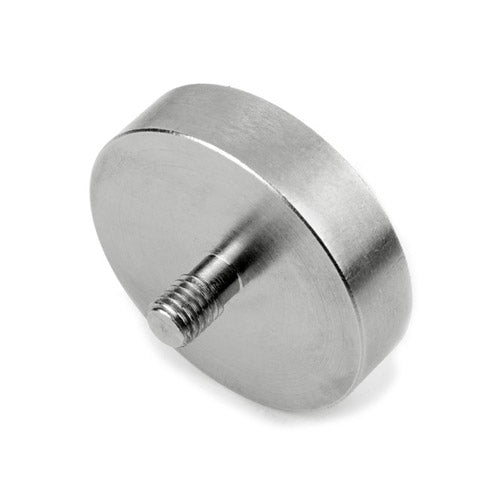

This neodymium pot magnet with male thread stud measures 75 mm (D) x 15 mm (h).
The overall height including the external stud is 34 mm (H).
It has a pull force of 164 kg and weighs 550 grams.
About neodymium pot (or cup)magnets:
Our male threaded rare earth holding pot magnets are designed to be used with a washer and nut. These neodymium holding pot magnets are high strength magnets in a mild steel cup for extra protection against chipping or cracking. Due to the protective cover on these pot magnets, they are a single sided magnet.
| ModelNo. | DØ | M | H | h | Pull force (kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 41 | 57 |
| AMFYPC42 | 42 | 6 & 8 | 20 | 9 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 21.5/24 | 11.5 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 164 | 550 |
