Neodymium Pot Magnet - 42 mm | Female Thread

Product code: AMFYPD42

$16.66for 1 to 9 items
$12.97buy 10 to 99 itemsand save 22%
$10.66buy 100+ itemsand save 36%

Neodymium Pot Magnet - 42 mm | Female Thread

Product Code AMFYPD42
Pull Force* 68kg
Weight 87gm
Style Neo Pot Female Thread
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetized thru the 9 mm

Product Description:

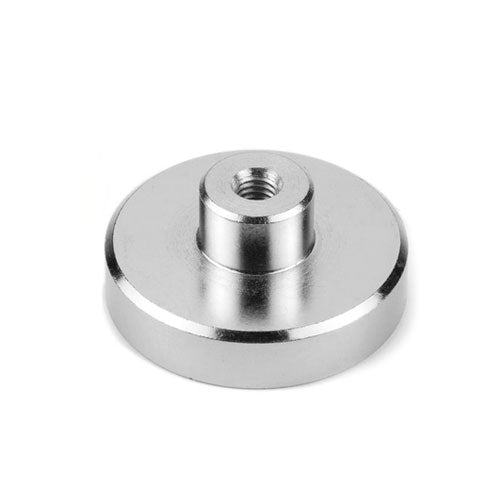

This neodymium magnet with female thread shaft measures 42 mm (D) x 9 mm (h).
The overall height including the external shaft is 20 mm (H). The shaft opening is 6 mm (M).
It has a pull force of 68 kg and weighs 87 grams.

About Neodymium Pot or Cup Magnets:

Neodymium pot magnets, also called pot magnets, or mounting magnets, are high strength rare earth magnets set in a steel cup for extra protection against damage. The steel cup offers protection for the magnet and concentrates the magnetic force on one side. This pot magnet has a female threaded shaft.

ModelNo. D1Ø M H h Pull force (kg) Weight (g)
AMFYPD10 10 5.5 3 12 5 2.2 3.5
AMFYPD12 12 6 3 13 5 3.2 5
AMFYPD16 16 6 4 13 5 5.5 8
AMFYPD20 20 8 4 15 7 9 17
AMFYPD25 25 10 5 17 8 22 32
AMFYPD32 32 10 6 18 8 34 47
AMFYPD36 36 10 6 18 8 41 59
AMFYPD42 42 10 6 20 9 68 87
AMFYPD48 48 12 8 24 11.5 81 132
AMFYPD60 60 14 8 30 15 113 270
AMFYPD75 75 16 10 34 18 164 552

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
