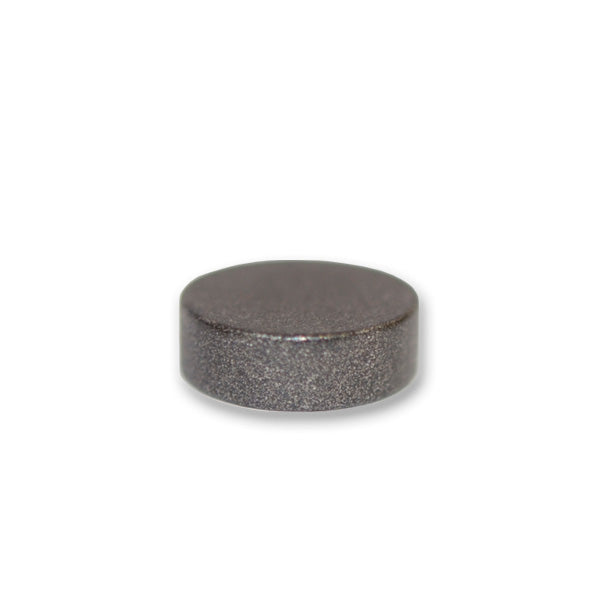

Neodymium Disc - 3/8" x 1/8" | Teflon coating | N42SH

Product code: 20060T

$2.88for 1 to 9 items
$2.51buy 10 to 99 itemsand save 13%
$1.92buy 100+ itemsand save 33%

Neodymium Disc - 3/8" x 1/8" | Teflon coating | N42SH

Product Code 20060T
Pull Force* 2.1 kg
Weight 11gm
Style Neodymium Disc
Grade N42SH
Coating Teflon
Direction of Magnetisation Axially magnetized
Dimensions Height:3.2 mm, Diameter:9.5 mm

Product Description:

This Teflon coated Neodymium Disc measures 3/8" (D) x 1/8" (H). It has a pull force of 2.1 kg. Suitable for use in high temperature applications GRADE N42SH

Product Information:

These high-performance Neodymium disc magnets are made from high-temperature resistant material (Grade N42SH) with a working temperature of up to 300 degrees Fahrenheit or 150 degrees Celsius. These magnets are ideal for manufacturing and engineering in high-temperature applications.

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
