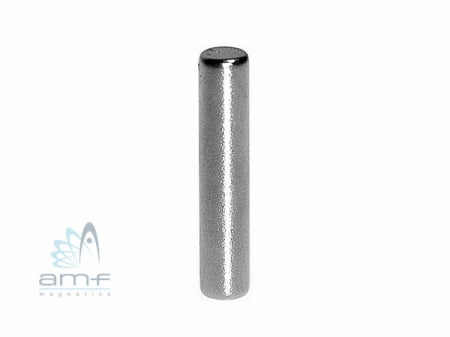

Neodymium Cylinder - 4 mm x 10 mm

Product code: 21052

$1.18for 1 to 9 items
$0.77buy 10 to 99 itemsand save 35%
$0.64buy 100+ itemsand save 45%

Neodymium Cylinder - 4 mm x 10 mm

Product Code 21052
Pull Force* .580 kg
Weight 1gm
Style Neodymium Cylinder
Gauss 6178
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetized
Dimensions Height:10 mm, Diameter:4 mm

Product Description:

This rare earth cylinder measures 4 mm (D) x 10 mm (H). It has a magnetic flux reading of 6178 Gauss and a pull force of 0.580 kg.

About rare earth cylinder magnets:

These magnets are useful in fields such as radio communications and other hi-tech communication devices. Neodymium-cylinder magnets also find applications in gold-digging and other metal detection industries. Mining companies use these magnets with their modern technologies in some of the remotest and most challenging environments on earth. Neodymium cylinders are also used in the industrial printing process.

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
