Neodymium Mounting Magnet - 88 mm x 8 mm | Rubber Coated

Product code: RCND88F

$22.99for 1 to 9 items
$19.07buy 10+ itemsand save 17%

Neodymium Mounting Magnet - 88 mm x 8 mm | Rubber Coated

Product Code RCND88F
Pull Force* 42 kg
Weight 210gm
Style Mounting Magnet F-thread
Grade N35
Coating Santoprene Rubber
Direction of Magnetisation Axially magnetized through the 8 mm
Dimensions Height:8.3 mm, Diameter:88 mm

Product Description:

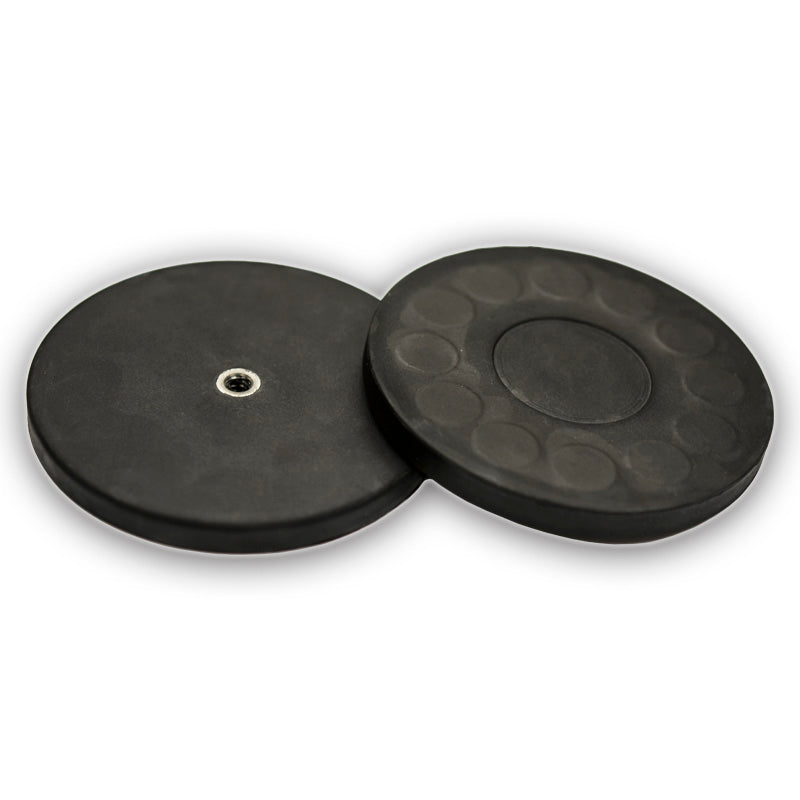

This neodymium rare earth mounting magnet measures 88 mm (D) x 8.3 mm (H). It has a center hold with an M6 female thread. The Santoprene rubber coating protects the surface. This rare earth magnet has a pull force of 42 kg and weighs 210 grams. GRADE N35.

About mounting magnets:

Our rare earth mounting magnets are designed for screwing objects into. These Neodymium mounting magnets are high strength rare earth magnets in a durable Santoprene rubber coating which protects against delicate surface areas. These magnets are often used as anchor points. Sections of plywood are screwed into the magnet’s central thread, closing the door or window void. Opening and closing the void for the duration can only be performed from the interior of the site with a screwdriver. The rubber coating on this very strong magnet protects the frames. This method, while safe and secure, easy to open or close, allows fragile glass products to be installed once all the dirty and destructive construction work has concluded.

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

Product Description:

This neodymium rare earth mounting magnet measures 88 mm (D) x 8.3 mm (H). It has a center hold with an M6 female thread. The Santoprene rubber coating protects the surface. This rare earth magnet has a pull force of 42 kg and weighs 210 grams. GRADE N35.

About mounting magnets:

Our rare earth mounting magnets are designed for screwing objects into. These Neodymium mounting magnets are high strength rare earth magnets in a durable Santoprene rubber coating which protects against delicate surface areas. These magnets are often used as anchor points. Sections of plywood are screwed into the magnet’s central thread, closing the door or window void. Opening and closing the void for the duration can only be performed from the interior of the site with a screwdriver. The rubber coating on this very strong magnet protects the frames. This method, while safe and secure, easy to open or close, allows fragile glass products to be installed once all the dirty and destructive construction work has concluded.

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
