Neodymium Mounting Magnet - 22 mm x 6 mm | Rubber Coated

Product code: RCND22F

$5.44for 1 to 9 items
$4.69buy 10+ itemsand save 14%

Neodymium Mounting Magnet - 22 mm x 6 mm | Rubber Coated

Product Code RCND22F
Pull Force* 5 kg
Weight 12gm
Style Mounting Magnet F-thread
Grade N35
Direction of Magnetisation Axially magnetized
Dimensions Thickness:6 mm, Diameter:22 mm

Product Description:

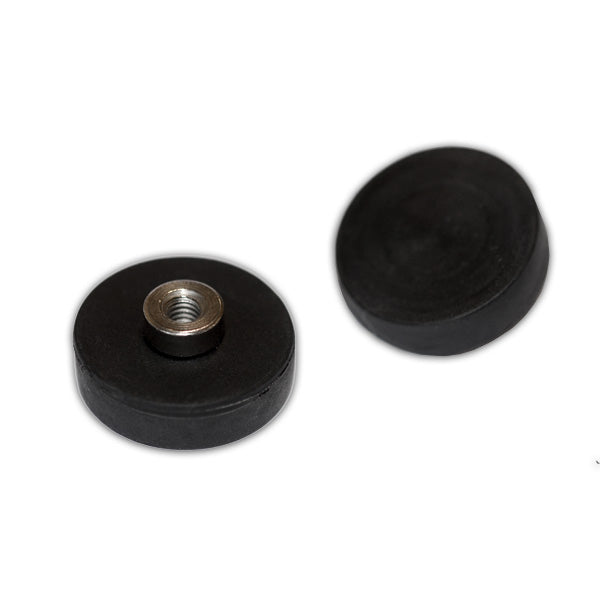

This rubber coated neodymium mounting magnet measures 22 mm (D) x 6 mm (H). It has a center hole with an M3 female thread. The Santoprene rubber coating protects surfaces. This rare earth magnet has a pull force of 5 kg and a weighs 12 grams. GRADE N35

Product Information:

Rubber coated magnets have a superior slide resistance over regular magnets due to the increased friction generated by the rubber and steel surface. Rubber coating resists corrosion and protects easily scratched surfaces. These magnets are often used with an eye bolt or hook screwed into the threaded central hole to suspend outdoor equipment, or string up guide lines or barriers. They are water resistant and suitable for use in marine, aquatic and outdoor environments. Magnetic engagement avoids the need to drill into surfaces and the rubber coating protects the same. These magnets are used by farmers, campers, truck drivers, emergency workers to create fixing points on the exterior of their vehicles to string up hazard tape, signage or lighting. They are also used on construction sites, and in situations where metal strike presents a hazard. Shipping containers, mobile homes, portable classrooms and offices often have metal doors, walls, and ceilings. These magnets provide a way to create fixing points with no damage to the surfaces.

Santoprene Rubber coated magnets are ideal for holding or creating an attachment system for non-metallic materials. Rubber coatings offer protection to both the magnet and the surface to which they are attached. This can be beneficial where painted metal surfaces are involved. Other advantages include increased resistance to slippage or dislodgement due to sheer forces and increased protection from corrosion and collision damage which are the main causes of magnet failure. Rubber protects the magnet and ensures its reliable and consistent operation over time.

Applications include closures or latches for metal gates or doors where an ordinary magnet would break or attachment of signage to painted metal surfaces using the male thread and a nut. Timber or acrylic sheeting can be fixed to metal window frames to provide temporary  protective or safety screens. Likewise, brackets or footings can be attached to the male thread to make any object attach to steel. Rubber coated magnets protect surfaces from scratching or damage, especially where repeated relocation or removal occurs.

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
