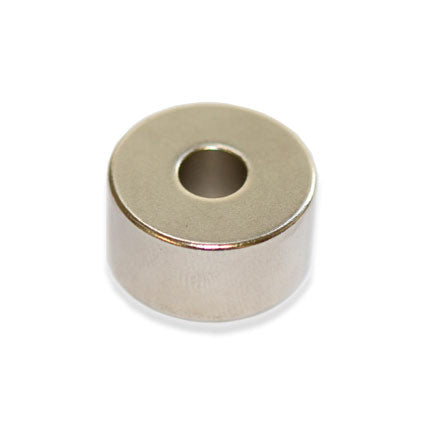

Neodymium Ring - 19mm x 6mm x 10mm

Product code: 23006

$9.13for 1 to 9 items
$8.15buy 10 to 99 itemsand save 11%
$6.12buy 100+ itemsand save 33%

Neodymium Ring - 19mm x 6mm x 10mm

Product Code 23006
Pull Force* 9.4 kg
Weight 19gm
Style Rare Earth Ring magnet
Gauss 5323
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 10mm
Dimensions Outside Diameter:19mm, Inside Diameter:6mm, Thickness:10mm

Magnetic Product Description:

This rare earth ring magnet has an outside diameter of 19mm, an inside diameter of 6mm and a thickness of 10mm. It is identified by the AMF magnet part number 23006.

Uses for our rare earth ring magnets:

Metal separation, picking up nails & screws, water conditioning, building generators, magnetic stirrers, metal detectors, tool knife holders, holding, stud finders.

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
