Neodymium Pot Magnet - 10 mm | Male Thread

Product code: AMFYPC10

$1.07for 1 to 9 items
$0.89buy 10 to 99 itemsand save 17%
$0.77buy 100+ itemsand save 28%

Neodymium Pot Magnet - 10 mm | Male Thread

Product Code AMFYPC10
Pull Force* 2.2 kg
Weight 3gm
Style Neo Pot Male Thread
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetized thru the 5 mm

Product Description:

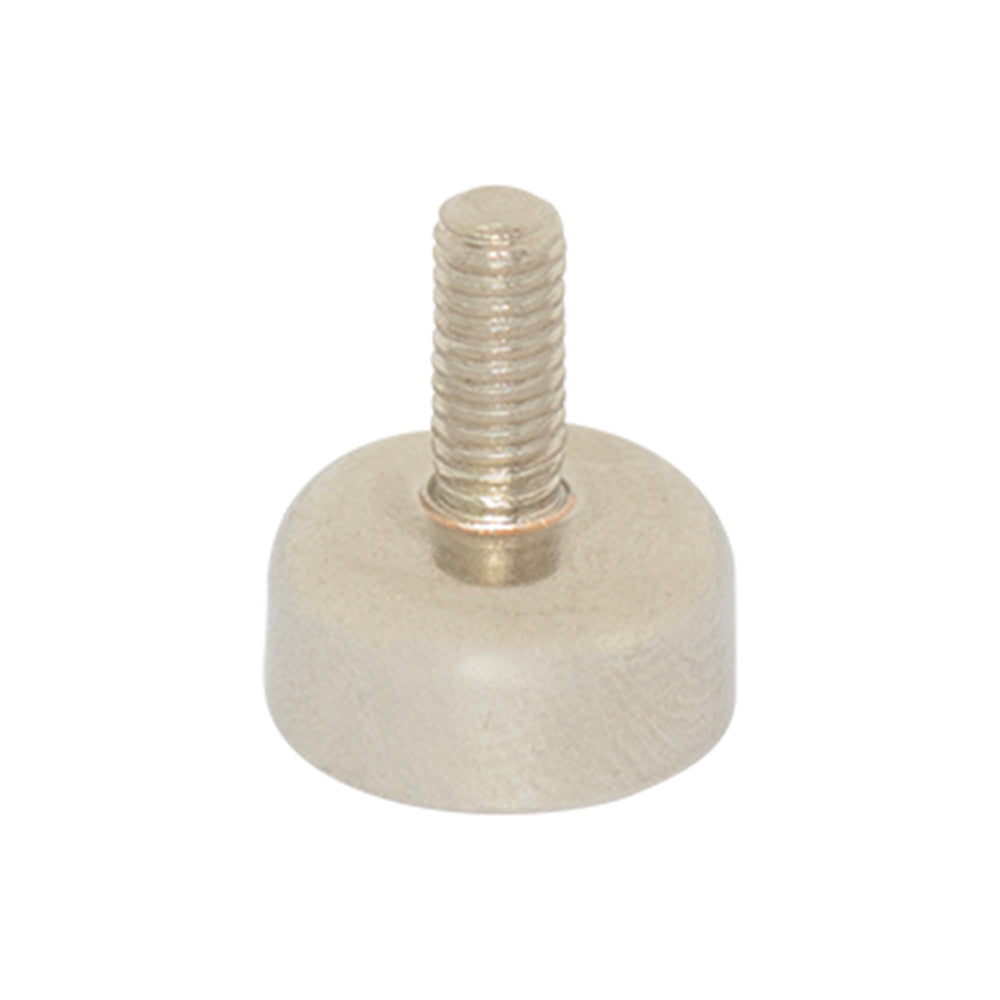

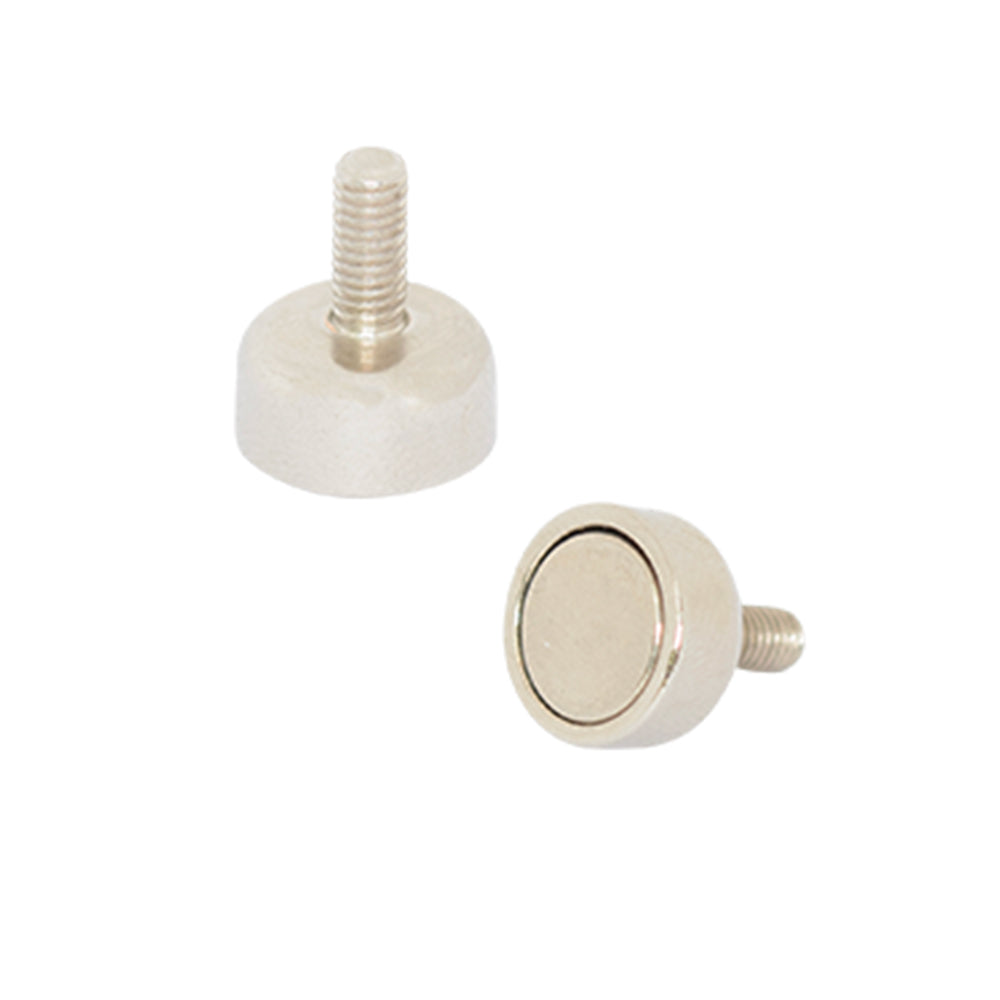

This neodymium magnet with male thread stud measures 10 mm (D) x 5 mm (h).
The overall height including the external stud is 12 mm (H).
It has a pull force of 2.2 kg and weighs 3.5 grams.

 About pot magnets:

These neodymium pot magnets are high strength rare earth magnets in a mild steel cap for extra protection. As a result of the protective cover on these pot magnets, they are a single-sided magnet.

ModelNo. M H h Pull force (kg) Weight (g)
AMFYPC10 10 3 12 5 2.2 3.5
AMFYPC12 12 3 13 5 3.2 5
AMFYPC16 16 4 13 5 5.5 7.5
AMFYPC20 20 4 15 7 9 16
AMFYPC25 25 5 17 8 22 30
AMFYPC32 32 6 18 8 34 45
AMFYPC36 36 6 18 8 41 57

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
