Neodymium Pot Magnet - 36 mm | Female Thread

Product code: AMFYPD36

$10.98for 1 to 9 items
$8.23buy 10 to 99 itemsand save 25%
$7.34buy 100+ itemsand save 33%

Neodymium Pot Magnet - 36 mm | Female Thread

Product Code AMFYPD36
Pull Force* 41 kg
Weight 59gm
Style Neo Pot Female Thread
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetized thru the 8 mm

Product Description:

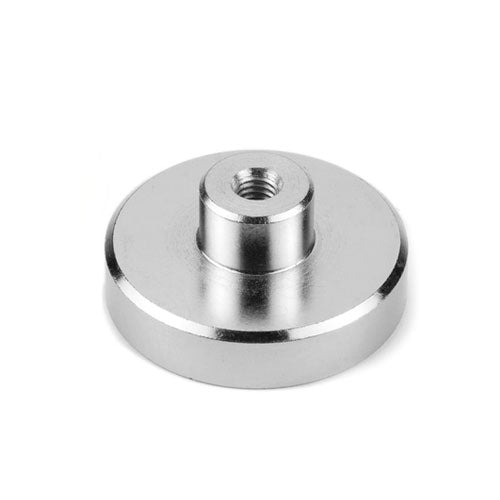

This neodymium magnet with female thread shaft measures 36 mm (D) x 8 mm (h).
The overall height including the external shaft is 18 mm (H). The shaft opening is 6 mm (M).
It has a pull force of 41 kg and weighs 59 grams.

About neodymium mounting magnets:

Our rare earth mounting magnets - pot or cup magnets - with female thread are perfect for screwing objects into. These Neodymium mounting magnets are high strength magnets in a mild steel cup.

ModelNo. D1Ø M H h Pull force (kg) Weight (g)
AMFYPD10 10 5.5 3 12 5 2.2 3.5
AMFYPD12 12 6 3 13 5 3.2 5
AMFYPD16 16 6 4 13 5 5.5 8
AMFYPD20 20 8 4 15 7 9 17
AMFYPD25 25 10 5 17 8 22 32
AMFYPD32 32 10 6 18 8 34 47
AMFYPD36 36 10 6 18 8 41 59

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
