Neodymium Pot Magnet - 16 mm x 5 mm | Countersunk

Product code: AMFYPA16

$2.50for 1 to 9 items
$1.95buy 10 to 99 itemsand save 22%
$1.44buy 100+ itemsand save 43%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet - 16 mm x 5 mm | Countersunk

Product Code AMFYPA16
Pull Force* 5 kg
Weight 7gm
Style Neodymium Pot C/Sunk
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetized thru the 5 mm

Product Description:

This neodymium pot magnet measures 16 mm (D) x 5 mm (H). The countersunk hole is 3.5 mm (D) and is sized for a M3 screw. It has a pull force of 5 kg.

Product information:

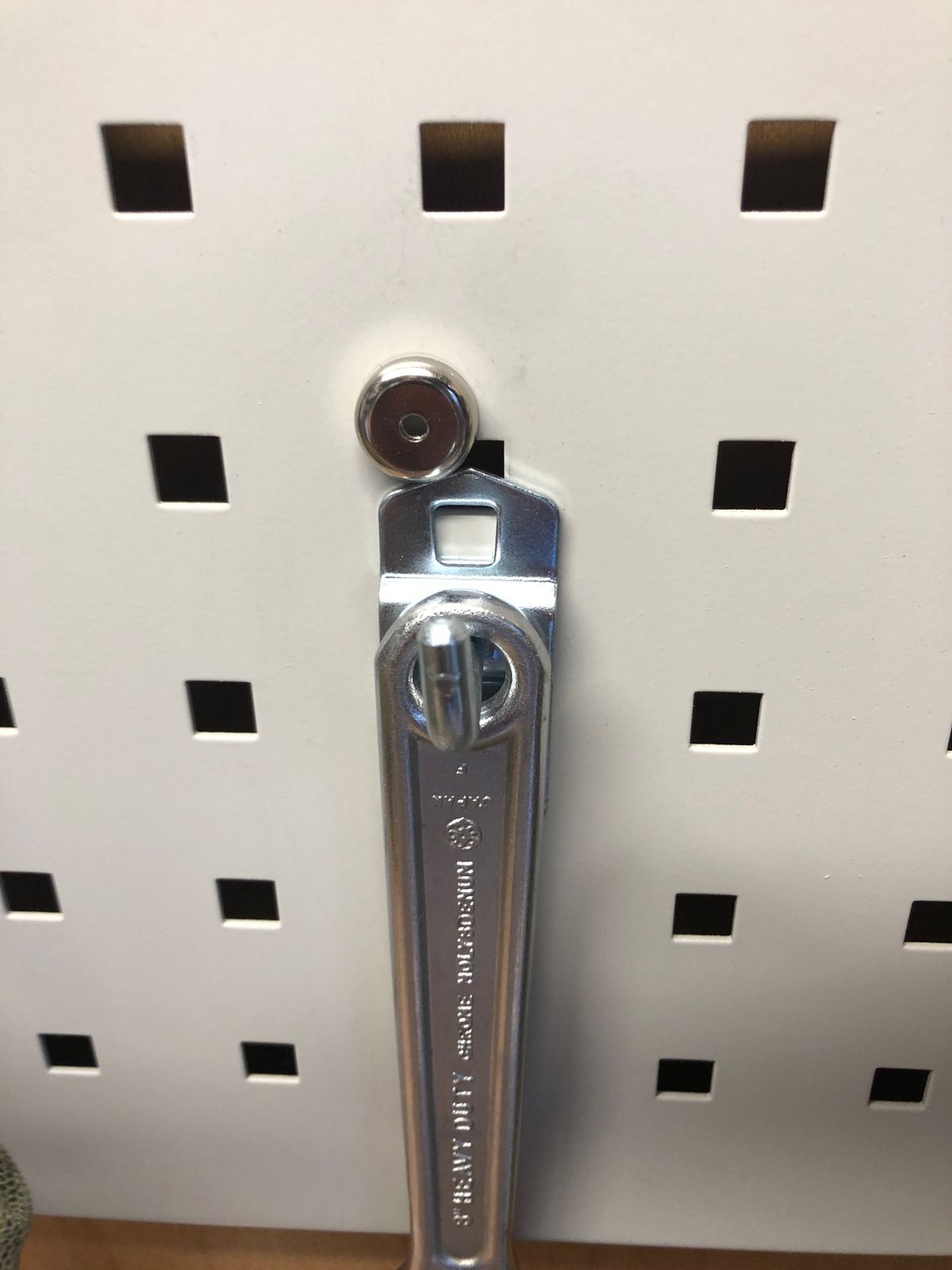

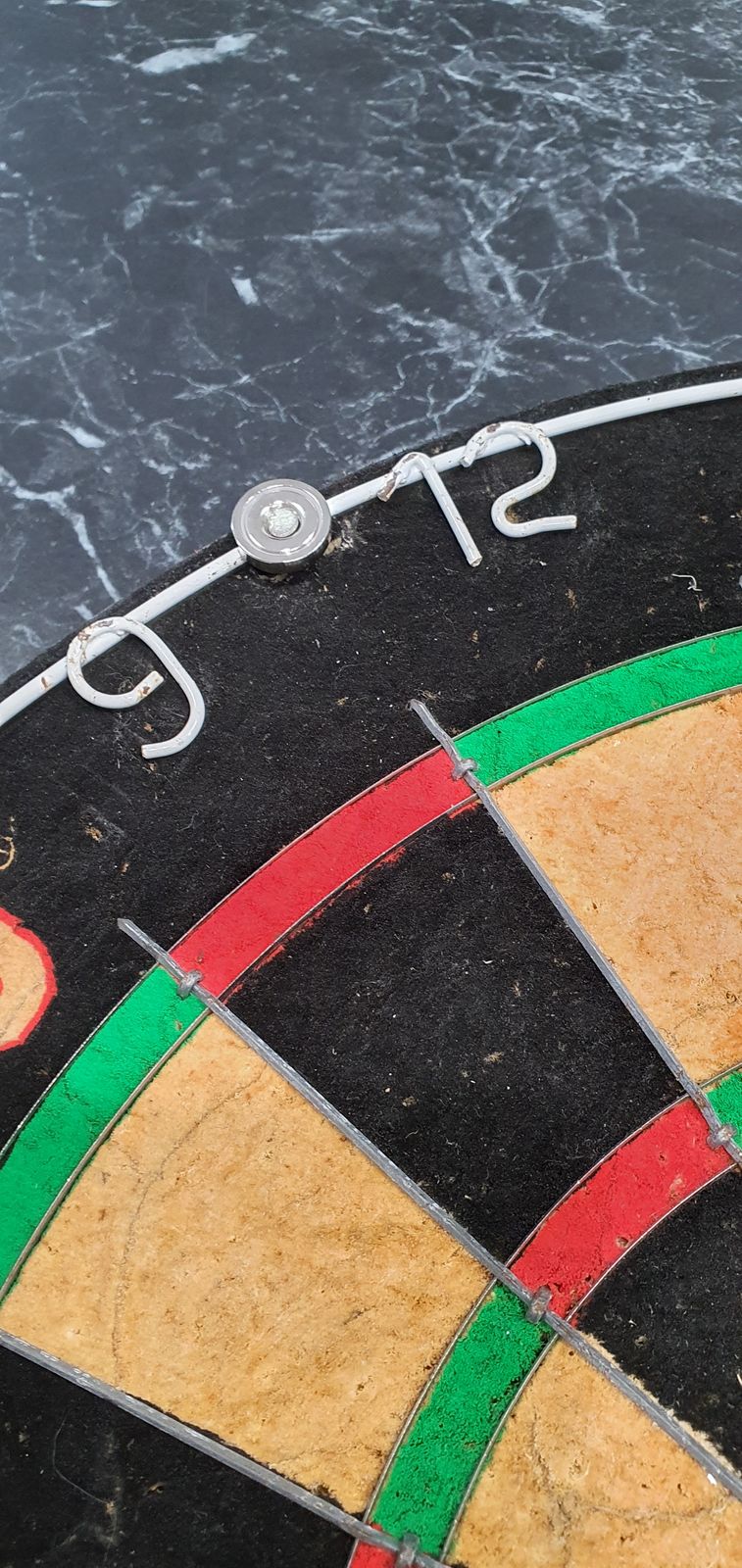

These popular mounting magnets have a high-strength neodymium magnet in a mild steel nickel coated pot. Countersunk mounting magnets can be screwed securely in place. They are often used for kitchen cabinetry, staircases, or hanging artwork.

ModelNo. D1Ø D2Ø H Pull force (kg) Weight (g)
AMFYPA16 16 3.5 6.5 5 5 7
AMFYPA20 20 4.5 8.5 7 6 13
AMFYPA25 25 5.5 10.4 8 14 23
AMFYPA32 32 5.5 10.4 8 25 39
AMFYPA36 36 6.5 12 9 29 52
AMFYPA42 42 6.5 12 9 37 76

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
