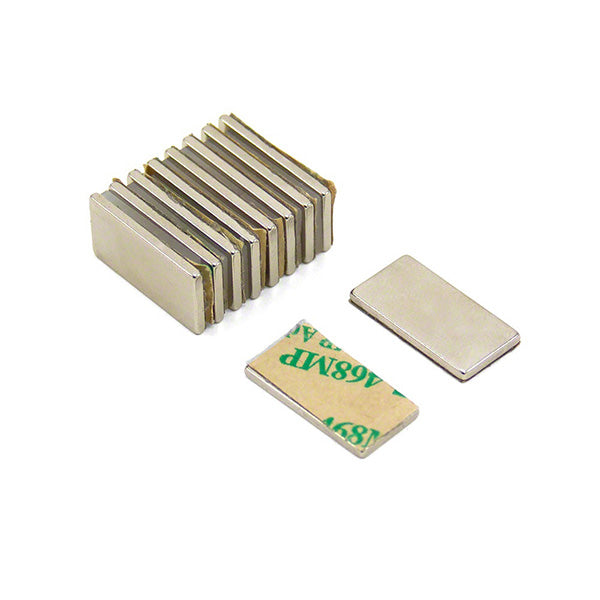

Neodymium Block - 20 mm x 10 mm x 1 mm | Self-Adhesive

Product code: 61003

$2.15for 1 to 9 items
$2.10buy 10 to 99 itemsand save 2%
$1.65buy 100+ itemsand save 23%

Neodymium Block - 20 mm x 10 mm x 1 mm | Self-Adhesive

Product Code 61003
Pull Force* 0.82 kg
Weight 1gm
Style Neodymium Block Self-Adhesive
Grade N35
Coating Nickel (NiCuNi)
Dimensions Width:10 mm, Length:20 mm

Product Information:

Neodymium magnets with adhesive backing are very popular for crafts, hobbies and projects. This pair of rare earth block magnets are ideal for sticking on to any non-magnetic surface. They can be used in your office, warehouse or home. Simply peel away the protective backing paper from the adhesive face of the magnet and apply to a nonmagnetic surface for a secure hold. Also used for promotional displays or for adhering artwork or calendars to various surfaces at your office, warehouse or home. Businesses and organizations like museums and galleries use these self-stick magnetic blocks to join display cases and lighting cabinetry. Application not recommended if the surface temperature is below 10° C.

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
