Product code: RCND88M
Leading Magnet Supplier
30 Day Returns

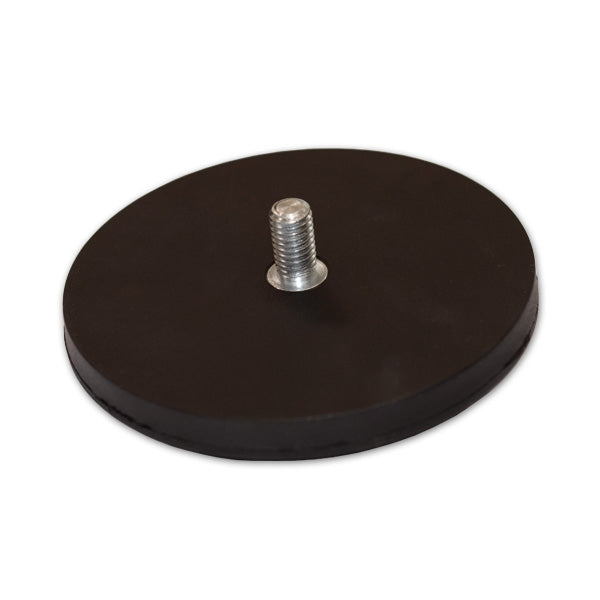

With a Neodymium magnetic core, this product has a strong pull force of 42 kilograms, and a rubber coating that protects delicate surface areas as well. This male thread Neodymium pot has a diameter of 88mm, a 8mm thickness, and a 20mm high M8 male threaded external boss. This product is identified by AMF Magnets Part Number RCND88M.
Rubber coated magnetic anchors are placed onto the frames of metal doors and windows of buildings under construction and allow sheets of ply or similar materials to be secured with a nut to the bolt that protrudes from the steel cap. This temporary method of closure deters thieves and protects the site and valuable materials from the weather. Covering openings on a construction site in this manner also means that glazing works can be deferred to the end of the construction project when the site is safer for these materials that can be easily scratched, stained or broken. Rubber coated magnets are commonly used in conjunction with glass. painted steel or similar materials. The rubber coating protects the glass and while magnets will not cling to glass, these magnets will cling to each other through glass or Perspex-type materials. One pot magnet is needed on each side of the glass panel for each fixing point. Pot magnets are very strong and their positioning needs to be carefully considered. Event managers and Wedding planners like to secure decorations, signage, fabrics and decorative flowers to glass windows and doors for special events and these holding pot magnets enable this to occur in a convenient and secure way that protects delicate surfaces such as glass and are easy to remove when the event is over. Other users find these magnets ideal for attaching to vehicles and machinery without damaging the paint or penetrating surfaces.
AMF Male Threaded Rare Earth holding pot magnets are designed to be used with a washer and nut. These high strength rare earth magnets are encapsulated in a steel casing and then covered in a durable Santoprene rubber casing to protect delicate surfaces.
No FAQ available
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
