Neodymium Mounting Magnet - 66 mm x 8 mm | Rubber Coated
Product code: RCND66M
Neodymium Mounting Magnet - 66 mm x 8 mm | Rubber Coated
Product Description

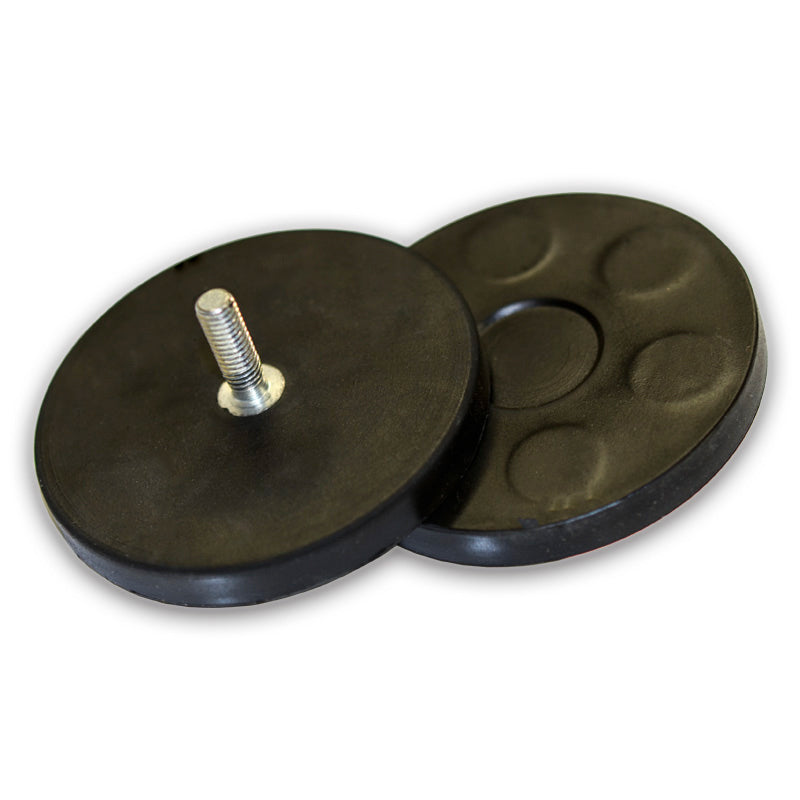

This rubber coated neodymium mounting magnet measures 66 mm (D) x 8 mm (h). It has an external stud with an M8 male thread. The overall height including the external stud is 15 mm (H). It has a pull force of 18 kg and weighs 110 grams. The rubber coating protects delicate surface areas.
About rubber coated neodymium magnets:
These rubber coated neodymium magnets are very strong and high tolerance to metal strike and water penetration relative to non rubber-coated magnets. The male thread external stud can be trimmed if necessary. These high strength rare earth magnets are designed to be used with a washer and nut. They are encased in a steel pot covered with a durable Santoprene rubber casing for extra protection against delicate surface areas.
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
