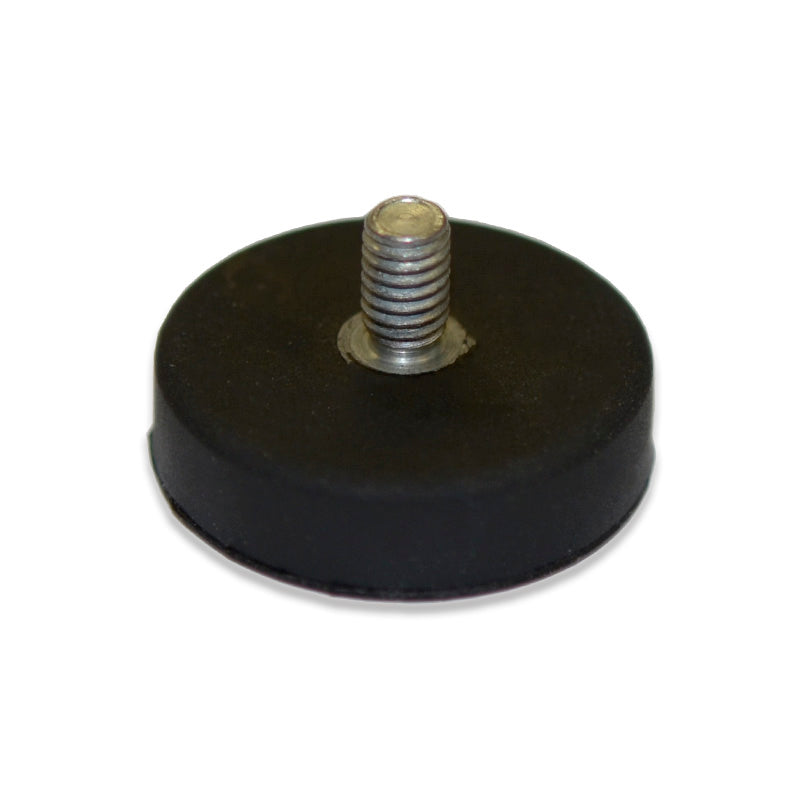

Male Thread Neodymium Mounting Magnet - 22mm x 6mm, Boss and Rubber Case

Product code: RCND22M

$5.44for 1 to 9 items
$4.69buy 10+ itemsand save 14%

Male Thread Neodymium Mounting Magnet - 22mm x 6mm, Boss and Rubber Case

Product Code RCND22M
Pull Force* 5kg
Weight 10gm
Grade N35
Coating Santoprene Rubber
Direction of Magnetisation Axially (through 6mm)
Dimensions Thickness:6mm, Diameter:22mm

Product Description

This product has a Neodymium magnetic core, a strong pull force of 5 kg, and a rubber coating that protects delicate surface areas as well. This male thread neodymium mounting magnet has a diameter of 22mm, a 6mm thickness, 6mm high M4 male threaded and external boss. The product is identified by AMF Magnets Part Number RCND22M.

Uses:

The male threaded Rare Earth mounting magnets are designed to be used with a washer and nut. These high strength rare earth magnets are encased in a steel holding pot covered in a durable rubber casing for extra protection against delicate surface areas.

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
