Neodymium Mounting Magnet - 66 mm x 8 mm | Rubber Coated

Product code: RCND66F

$12.25for 1 to 9 items
$10.56buy 10+ itemsand save 14%

Neodymium Mounting Magnet - 66 mm x 8 mm | Rubber Coated

Product Code RCND66F
Pull Force* 14 kg
Weight 110gm
Style Mounting Magnet F-thread
Grade N35
Coating Santoprene Rubber
Direction of Magnetisation Axially magnetized through the 8 mm
Dimensions Height:8 mm, Diameter:66 mm

Product Description:

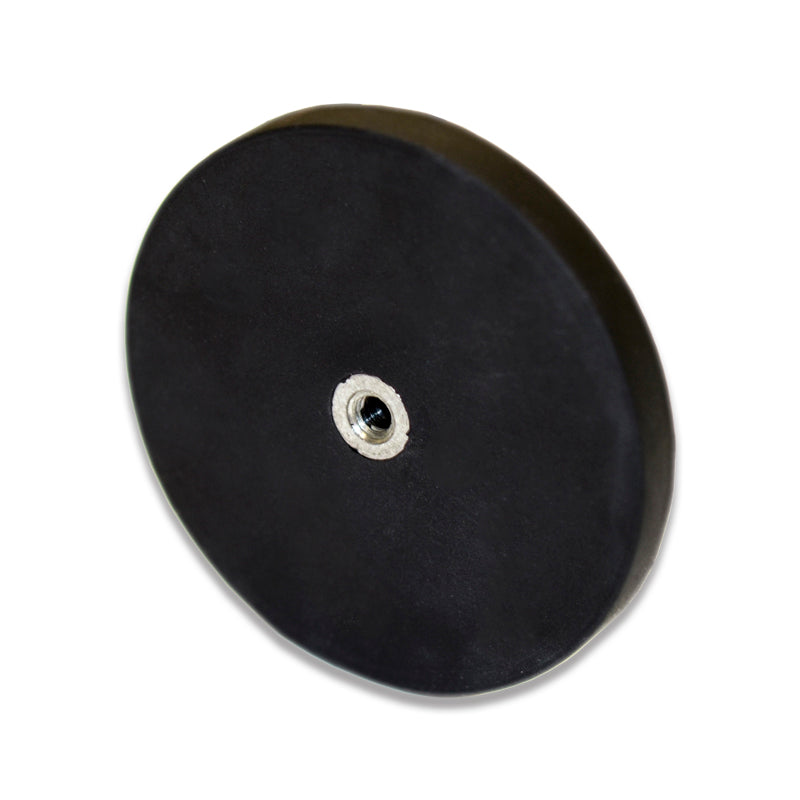

This rubber-coated mounting magnet measures 66 mm (D) x 8 mm (H). It has a center hole with an M6 female thread. The Santoprene rubber coating protects surfaces. This rare earth magnet has a pull force of 14 kg and weighs 110 grams.

Product Information:

Rubber coated magnets have a superior slide resistance over regular magnets due to the increased friction generated by the rubber and steel surface. Rubber coating resists corrosion and protects easily scratched surfaces. These magnets are often used with an eyelet or hook screwed into the threaded central hole to suspend outdoor equipment, or string up guide lines or barriers. They are water resistant and suitable for use in marine, aquatic and outdoor environments. Magnetic engagement avoids the need to drill into surfaces and the rubber coating protects the same. These magnets are used by farmers, campers, truck drivers, emergency workers to create fixing points on the exterior of their vehicles to string up hazard tape, signage or lighting. They are also used on construction sites, and in situations where metal strike presents a hazard. Shipping containers, mobile homes, portable classrooms and offices often have metal doors, walls, and ceilings. These magnets provide a way to create fixing points with no damage to the surfaces.

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
